Solve FutureWarning: I2CDisplay moved from displayio to i2cdisplaybus and I2CDisplay renamed I2CDisplayBus
In CircuitPython 8 and before,
I2CDisplay is in displayio. In CircuitPython 9+, it's moved to
i2cdisplaybus.I2CDisplayBus.

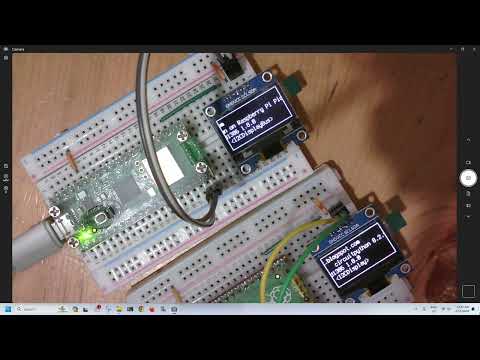

This exercise define display_bus in try:...except
ImportError:...block, using displayio.I2CDisplay on CircuitPython 8, and
i2cdisplaybus.I2CDisplayBus on CircuitPython 9.
rp2040_ssd1306_displayio_circuitpython89.py
"""
Solve:
FutureWarning: I2CDisplay moved from displayio to i2cdisplaybus
FutureWarning: I2CDisplay renamed I2CDisplayBus
In CircuitPython 8 and before, I2CDisplay is in displayio (https://docs.circuitpython.org/en/8.2.x/shared-bindings/displayio/index.html#displayio.I2CDisplay).
In CircuitPython 9+, it's moved to i2cdisplaybus.I2CDisplayBus (https://docs.circuitpython.org/en/latest/shared-bindings/i2cdisplaybus/index.html#i2cdisplaybus.I2CDisplayBus).
This exercise define display_bus in try:...except ImportError:...block,
using displayio.I2CDisplay on CircuitPython 8,
and i2cdisplaybus.I2CDisplayBus on CircuitPython 9.
lib needed (have to match with the CircuitPython running):
- adafruit_displayio_ssd1306.mpy
- adafruit_display_text folder
"""
import os
import sys
import board
import busio
import time
import displayio
import terminalio
# import adafruit_displayio_ssd1306 will raise the warning:
# FutureWarning: Display moved from displayio to busdisplay
# FutureWarning: Display renamed BusDisplay
# For now, I don't know how to handle it! May be the library will be changed later.
import adafruit_displayio_ssd1306
from adafruit_display_text import label
displayio.release_displays()
# Create the I2C interface and display object of SSD1306_I2C.
SCL = board.GP15
SDA = board.GP14
i2c = busio.I2C(SCL, SDA)
ssd1306_i2c_addr = 0x3C
display_width =128
display_height = 64
#--- Old approach for CircuitPython before 9 ---
#If run on CircuitPython 9, will raise warning:
#FutureWarning: I2CDisplay moved from displayio to i2cdisplaybus
#FutureWarning: I2CDisplay renamed I2CDisplayBus
#from displayio import I2CDisplay
#display_bus = I2CDisplay(i2c, device_address=ssd1306_i2c_addr)
#--- New approach for CircuitPython 9+ ---
#cannot run on CircuitPython 8
#ImportError: no module named 'i2cdisplaybus'
#from i2cdisplaybus import I2CDisplayBus
#display_bus = I2CDisplayBus(i2c, device_address=ssd1306_i2c_addr)
#--- Use try:...except ImportError:...block to load display_bus,
#Work on both CircuitPython 8 & 9
try:
# for CircuitPython 9+
from i2cdisplaybus import I2CDisplayBus
display_bus = I2CDisplayBus(i2c, device_address=ssd1306_i2c_addr)
except ImportError:
# for CircuitPython before 9
from displayio import I2CDisplay
display_bus = I2CDisplay(i2c, device_address=ssd1306_i2c_addr)
#--- End of try/except block ---
display = adafruit_displayio_ssd1306.SSD1306(
display_bus, width=display_width, height=display_height)
print("=================================================")
info = sys.implementation[0] + ' ' + os.uname()[3] + '\n' + \
'run on ' + os.uname()[4]
print(info)
print("=================================================")
print(adafruit_displayio_ssd1306.__name__,
adafruit_displayio_ssd1306.__version__)
print("===> Actually, display_bus is:", display_bus)
print("SCL: ", SCL)
print("SDA: ", SDA)
print("display.width x height: ",
display.width, " x ", display.height)
#================================================
# Make the display context
root_group = displayio.Group()
"""
show() is deprecated and will be removed in CircuitPython 9.0.0. Use .root_group = group instead.
https://docs.circuitpython.org/en/8.2.x/shared-bindings/displayio/index.html#displayio.Display.show
"""
#display.show(group)
display.root_group = root_group
bg_bitmap = displayio.Bitmap(display.width, display.height, 2)
bg_palette = displayio.Palette(2)
bg_palette[0] = 0x000000 # Black
bg_palette[1] = 0xFFFFFF # White
bg_bitmap.fill(1)
background = displayio.TileGrid(bg_bitmap, pixel_shader=bg_palette, x=0, y=0)
root_group.append(background)
inner_bitmap = displayio.Bitmap(display.width-2, display.height-2, 2)
inner_bitmap.fill(0)
inner = displayio.TileGrid(inner_bitmap, pixel_shader=bg_palette, x=1, y=1)
root_group.append(inner)
# draw a label say hello
text_hello = "coxxect.blogspot.com"
label_hello = label.Label(terminalio.FONT, text=text_hello, scale=1, color=0xFFFFFF, x=5, y=10)
root_group.append(label_hello)
# label for CircuitPython info
sys_info = sys.implementation[0] + " " + os.uname()[2] + " run on " + os.uname()[4]
# labels for driver
label_sysinfo = label.Label(terminalio.FONT,
text=sys_info,
scale=1,
color=0xFFFFFF,
x=5, y=24)
root_group.append(label_sysinfo)
# labels for driver
label_drv = label.Label(terminalio.FONT,
text=adafruit_displayio_ssd1306.__name__
+ " " + adafruit_displayio_ssd1306.__version__,
scale=1,
color=0xFFFFFF,
x=5, y=36)
root_group.append(label_drv)
# labels for driver
label_bus = label.Label(terminalio.FONT,
text=str(display_bus),
scale=1,
color=0xFFFFFF,
x=5, y=48)
root_group.append(label_bus)
# scroll()/reverse_scroll()
# ref:
# https://learn.adafruit.com/rgb-led-matrices-matrix-panels-with-circuitpython/example-simple-two-line-text-scroller
def scroll(line):
line.x = line.x - 1
line_width = line.bounding_box[2]
if line.x < -line_width:
line.x = display.width
def reverse_scroll(line):
line.x = line.x + 1
line_width = line.bounding_box[2]
if line.x >= display.width:
line.x = -line_width
time.sleep(1)
while True:
reverse_scroll(label_hello)
scroll(label_sysinfo)
scroll(label_drv)
display.refresh(minimum_frames_per_second=0)
